Plot BOIN decision boundaries and patient-level data

Source: R/boin_plot.R
boin_plot.Rd

[Experimental]
Generates a plot of decision boundaries from a BOIN design, optionally overlaid with patient-level data and a Gantt-style timeline.

Usage

boin_plot(
  data_boin,
  data_patients = NULL,
  ...,
  doses,
  gantt_include = FALSE,
  gantt_labels = NULL
)

Arguments

data_boin

A boin object from the BOIN::get.boundary() function or a data.frame with columns n_eval, escalate_if_inf, deescalate_if_sup, eliminate_if_sup.

data_patients

Optional data frame containing patient-level information, with columns subjid, dose (character), and dlt (logical). If gantt_include==TRUE, it must also include the DLT evaluation period with date_dlt_start and date_dlt_end.

...

Unused.

doses

Vector of dose labels, matching the order of dose levels in the BOIN design.

gantt_include

Logical, whether to include a Gantt chart of follow-up.

gantt_labels

Optional vector with labels as names and dates as values, to display in the Gantt chart.

Value

A ggplot2 object showing BOIN decision rules and patient data overlay (optional). If gantt_include==TRUE, the output is a patchwork object with an additional Gantt diagram.

Examples

#use a cohort size of 1
boin = BOIN::get.boundary(target=0.3, ncohort=15, cohortsize=1)

#In this example, 17 patients are included, 15 of which are already evaluated.
#Patients are deemed evaluable
set.seed(123)
data_patients = tibble(
  subjid = 1:17,
  dose = c("DL0", "DL0", "DL-1", "DL-1", "DL-1", "DL0", "DL0", "DL0",
           "DL1", "DL1", "DL1", "DL1", "DL1", "DL1", "DL1", "DL1", "DL1"),
  dlt = c(FALSE, TRUE, FALSE, FALSE, FALSE, FALSE, FALSE, FALSE,
          FALSE, FALSE, FALSE, FALSE, TRUE, FALSE, FALSE, NA, NA),
  date_dlt_start = as.Date("2025-01-01") +(1:17)*30 + rnorm(17, 0, 10),
  date_dlt_end = date_dlt_start+30
)

#default
boin_plot(boin,
          doses=c("DL-1", "DL0", "DL1", "DL2"))


#with patient labels
boin_plot(boin, data_patients=data_patients,
          doses=c("DL-1", "DL0", "DL1", "DL2"))

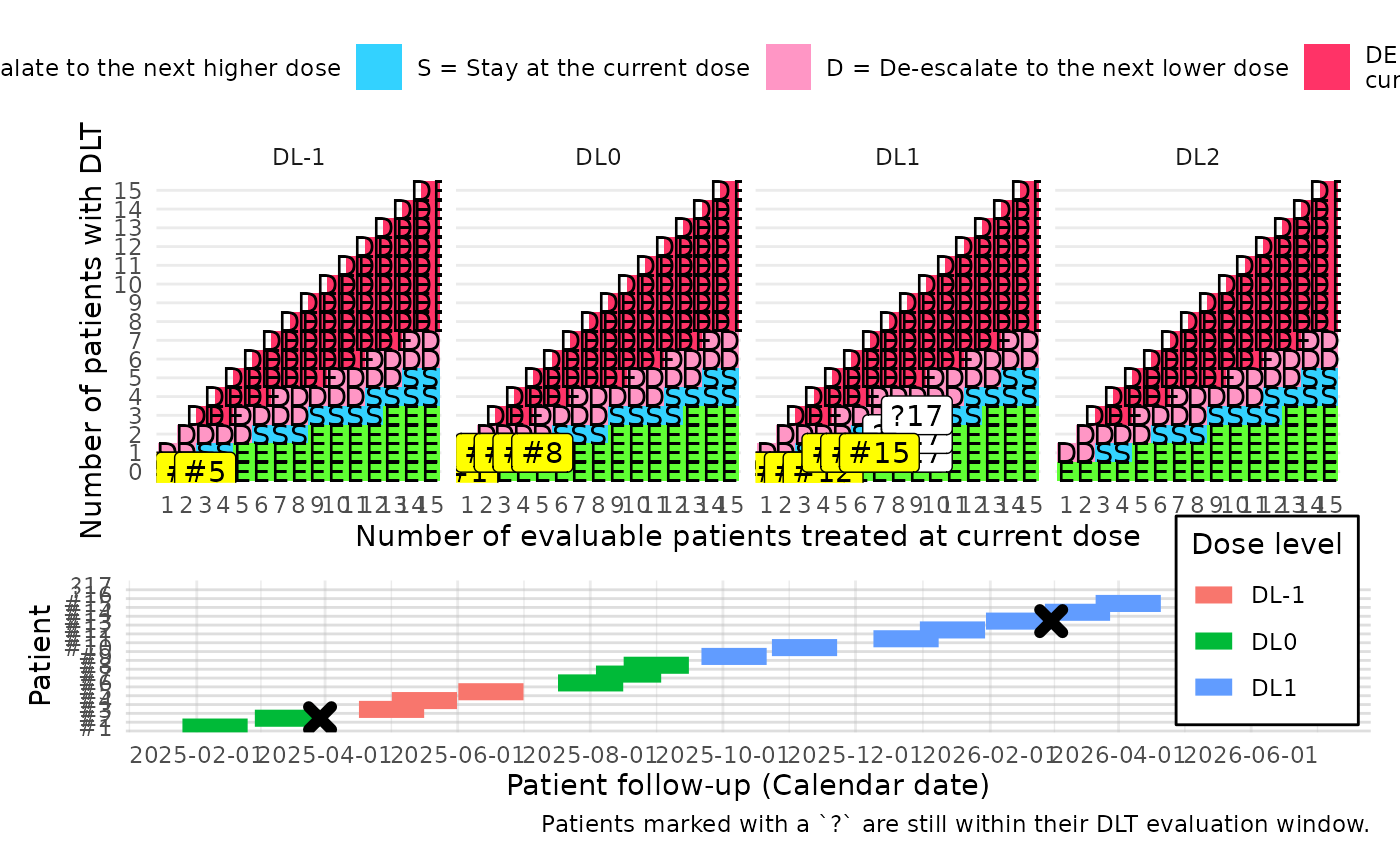

#with gantt diagram
p = boin_plot(boin, data_patients=data_patients, gantt_include=TRUE,
              doses=c("DL-1", "DL0", "DL1", "DL2"))
p


#with post production
p[[1]] = p[[1]] + ggplot2::scale_color_manual(values=c("red", "green", "blue", "yellow"))
p[[2]] = p[[2]] + ggplot2::scale_x_date(breaks=scales::breaks_width("2 months"))
p

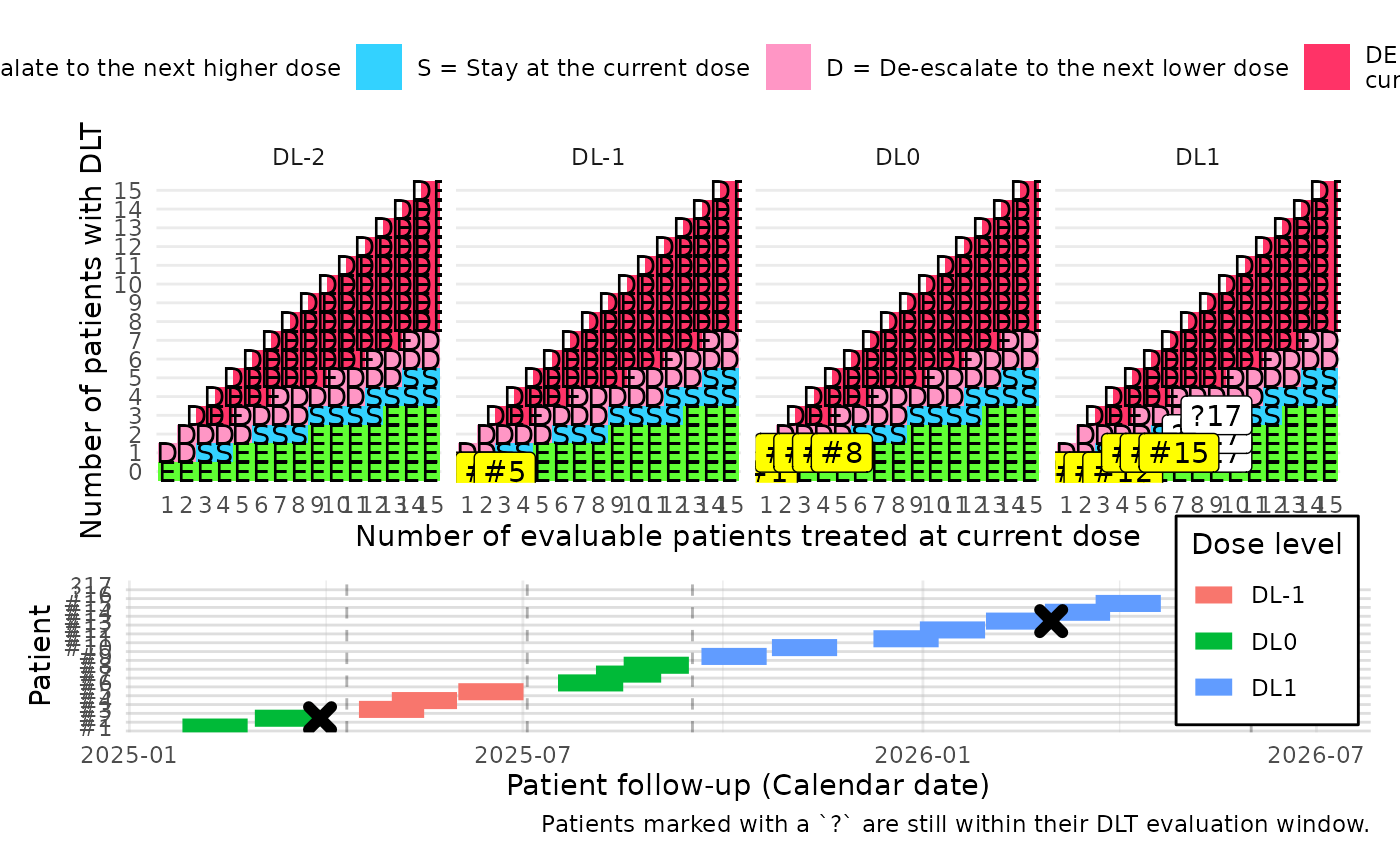

#with gantt labels
gantt_labels=c("Plot cutoff date"=as.Date("2026-06-01"),
               "Dose reevaluation"=as.Date("2025-04-11"),
               "Dose reevaluation"=as.Date("2025-07-03"),
               "Dose reevaluation"=as.Date("2025-09-17"))

boin_plot(data_boin=boin, data_patients=data_patients,
          doses = c("DL-2", "DL-1", "DL0", "DL1"),
          gantt_include=TRUE,
          gantt_labels=gantt_labels)
